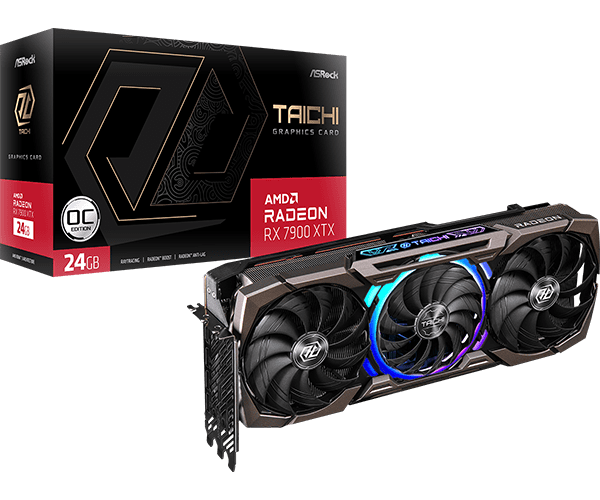

AsRock AMD Radeon RX 7900 XTX Taichi 24GB OC Graphics Card

About AsRock Radeon RX 7900 XTX Taichi 24GB OC Graphics Card Specification Details GPU AMD Radeon™ RX 7900 XTX Architecture RDNA™ 3 Memory 24GB GDDR6 Memory Bus 384-bit Boost Clock Up to 2680 MHz Game Clock 2510 MHz Compute Units 96 (with RT AI Accelerators) Infinity Cache 96MB Process Technology 5 nm (GCD), 6 nm (MCD) Transistor Count 57.7 billion Die Size 529 mm² PCI Express 4.0 Power Connectors 3 x 8-pin Display Outputs 3 x DisplayPort™ 2.1, 1 x HDMI™ 2.1 Cooling System Taichi 3X Cooling System with 110/100/110mm Striped Ring Fans Features Polychrome SYNC, ARGB Backplate, Reinforced Metal Frame, Dual BIOS, 22 Power Phase Design Dimensions 345 mm length TDP 355W DirectX Support 12 Ultimate OpenGL Support 4.6 Maximum Resolution 7680 x 4320 Expansion Slots Requires 3 slots The ASRock AMD Radeon RX 7900 XTX Taichi 24GB OC Graphics Card is a pinnacle of modern graphics technology, designed to deliver exceptional performance, innovative cooling solutions, and a robust design tailored for gaming enthusiasts and professionals alike. Key Features of the AsRock AMD Radeon OC Graphics Card Advanced GPU Architecture: Powered by the AMD Radeon™ RX 7900 XTX GPU, featuring 96 RDNA™ 3 Compute Units equipped with Ray Tracing (RT) and Artificial Intelligence (AI) accelerators. Equipped with 24GB of GDDR6 memory on a 384-bit memory bus, ensuring high-speed data processing and seamless multitasking. Incorporates 96MB of AMD Infinity Cache™ technology, enhancing data bandwidth and reducing latency. Enhanced Performance Clocks: Boost Clock: Up to 2680 MHz. Game Clock: 2510 MHz. Robust Power Design: Features a 22-phase power design, providing stable and efficient power delivery. Requires three 8-pin power connectors, supporting PCI® Express 4.0. Versatile Display Outputs: Three DisplayPort™ 2.1 ports. One HDMI™ 2.1 port. Graphics Card Body Design present in the AsRock AMD Radeon OC Graphics Card Premium Construction: The AsRock Radeon RX 7900 XTX Taichi 24GB OC Graphics Card boasts a reinforced metal frame, enhancing structural integrity and preventing PCB flex. ARGB Backplate: The AsRock Radeon RX 7900 XTX Taichi 24GB OC Graphics Card is equipped with an addressable RGB (ARGB) backplate, allowing for customizable lighting effects that synchronize with other system components. Cooling Innovations in the AsRock Taichi Edition OC Graphics Card Taichi 3X Cooling System: Designed for optimal thermal efficiency and minimal noise, balancing performance and acoustics. Striped Ring Fan: Features 110mm/100mm/110mm striped ring fans designed to enhance lateral airflow, improving overall cooling performance. Reverse Spin: The central fan spins in the opposite direction to the outer fans, reducing turbulence and enhancing airflow through the heatsink. 0dB Silent Cooling: Fans remain stationary during low-temperature operations for silent performance and activate under higher temperatures for optimal cooling. Air Deflecting Fin: Incorporates V-shaped cutting fins and air vents to guide airflow efficiently, enhancing heat dissipation. Ultra-fit Heatpipe: Heatpipes are consolidated to maximize contact with the GPU baseplate, optimizing heat transfer. Memory Heatpipe: Dedicated heatpipe designed to balance and enhance the temperature management of the video memory. Nickel-plated Copper Base: Premium copper base maximizes direct contact area with the GPU, improving thermal conductivity. High-density Metal Welding: Ensures effective isolation of gaps between heat pipes and stacked fins, improving heat dissipation. Nano Thermal Paste: Eliminates gaps in the contact area, maximizing heat transfer and thermal efficiency. Premium Thermal Pad: Assists in transferring heat from components to the heatsink, enhancing cooling efficiency. Precise Screw Torque: Optimized mounting pressure during assembly to improve thermal efficiency while preventing GPU die damage. ARGB Lighting present in the AsRock 24GB OC Graphics Card Polychrome SYNC: Integrated ARGB LEDs allow for unique, customizable lighting effects that can be synchronized with ASRock motherboards supporting Polychrome SYNC. LED Switch: Provides the option to switch the LED lighting on or off based on user preference. Power Supply and Application of the AsRock Radeon RX Computer Gaming Graphics Card Stable Power Delivery: The 22-phase power design ensures stable and efficient power delivery, crucial for maintaining performance during intensive tasks. Applications: Ideal for high-end gaming, offering immersive experiences with high frame rates and detailed graphics. Suitable for professional applications requiring substantial graphical processing power, such as 3D rendering, video editing, and simulation tasks. The ASRock AMD Radeon RX 7900 XTX Taichi 24GB OC Graphics Card stands as a testament to cutting-edge technology, combining robust design, advanced cooling solutions, and customizable aesthetics to meet the demands of both gamers and professionals. With this you can also attain the Zotac Gaming GeForce RTX 5070 Ti Solid OC Graphics Card. Powered by the NVIDIA Blackwell architecture and DLSS 4 16GB GDDR7, 256-bit, 28 Gbps, PCIE 5.0, Boost Clock 2482 MHz IceStorm 3.0 Advanced Cooling, 3x 100mm BladeLink fans, Vapor Chamber, Composite Heatpipes, Pass-thru Airflow Design, FREEZE Fan Stop, Active Fan Control
