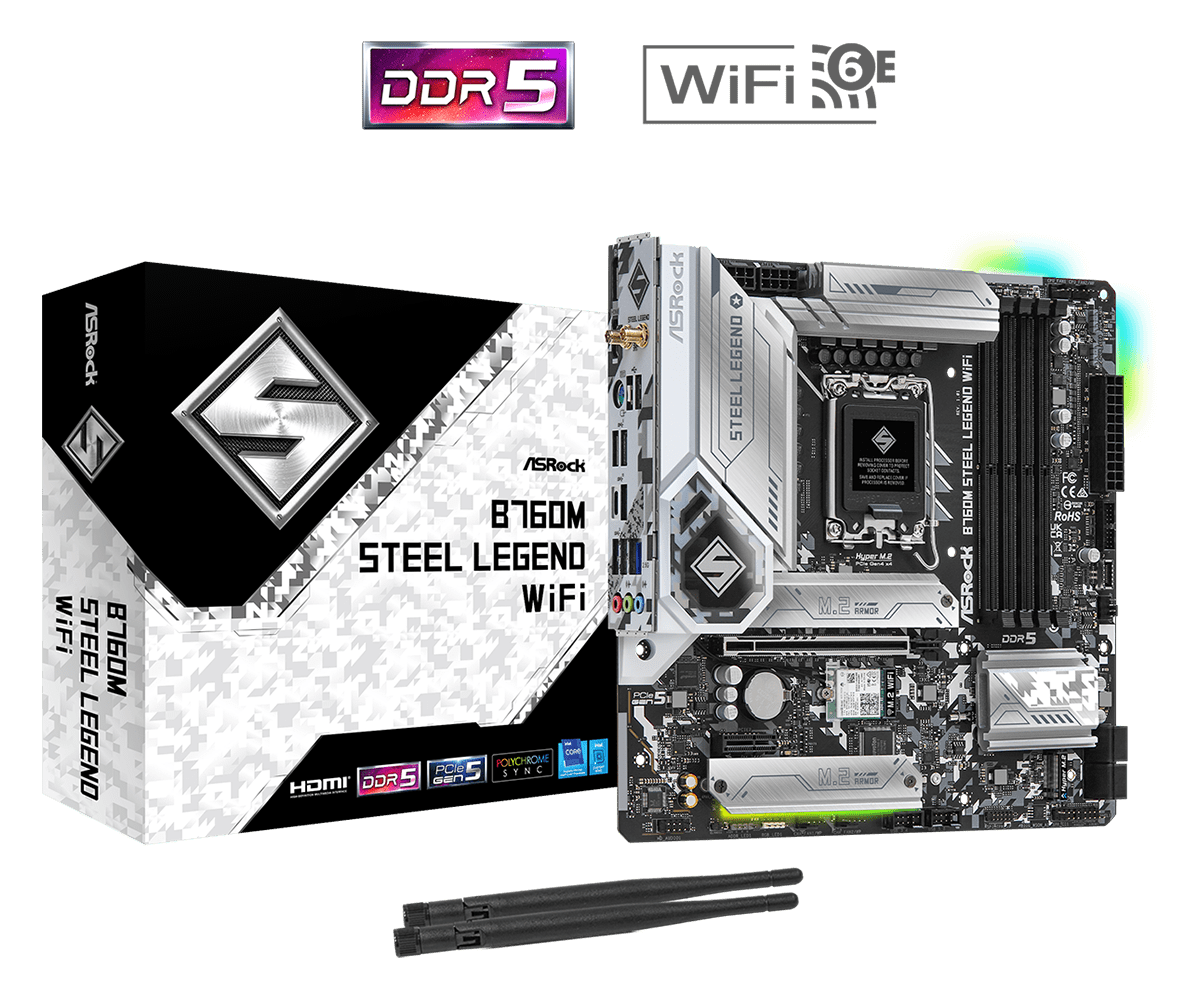

AsRock B760M Steel Legend WiFi Motherboard

About AsRock B760M Steel Legend WiFi Motherboard Category Specification CPU Compatibility Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Power Phase Design 12 1 1 Power Phase, Dr.MOS for VCore GT Memory Support 4 x DDR5 DIMM Slots, Dual Channel, up to 7200 MHz (OC), Max 192GB, ECC Support (with motherboard support) Expansion Slots 1 x PCIe 5.0 x16 Slot, 1 x PCIe 4.0 x1 Slot Graphics Outputs 1 x HDMI 2.1 (up to 4K 60Hz), 1 x DisplayPort 1.4 (up to 8K 60Hz / 5K 120Hz), 1 x eDP 1.4 (up to Full HD 60Hz) Audio Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio Storage Options 3 x Hyper M.2 Sockets (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s Connectors RAID Support Supports RAID 0, 1, 5, 10 for SATA storage devices USB Ports 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 1 x USB 3.2 Gen2 Type-A (Rear), 6 x USB 3.2 Gen1 (4 Rear, 2 Front), 6 x USB 2.0 (2 Rear, 4 Front) Networking Dragon 2.5G LAN (10/100/1000/2500 Mb/s), 802.11ax Wi-Fi 6E Module, Bluetooth 5.3 Expansion Slots 1 x M.2 Socket (Key E) for Wi-Fi/BT Module, 15μ Gold Contact in VGA PCIe Slot Internal Connectors 1 x eDP Signal Connector, 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin), 3 x Chassis/Water Pump Fan Connectors (4-pin), 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2 Gen2 Header Rear Panel I/O 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI ASRock Motherboard Utility (Phantom Gaming Tuning), ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, ASRock Easy RAID Installer Accessories 1 x User Manual, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5/6 GHz Antennas, 3 x Screws for M.2 Sockets, 2 x Standoffs for M.2 Sockets Form Factor Micro ATX (9.6″ x 9.6″), 2oz Copper PCB Operating System Support Microsoft® Windows® 10 64-bit / 11 64-bit Certifications FCC, CE, ErP/EuP ready The AsRock B760M Steel Legend WiFi Motherboard is engineered to deliver outstanding performance, durability, and style. Designed for modern gamers, creators, and power users, it blends cutting-edge features with rugged aesthetics to match today’s high-end PC builds. Key Features of the AsRock Steel Legend WiFi Motherboard 1. Striking Style and Premium Design Built with a robust and futuristic steel look, the AsRock B760M Steel Legend WiFi Motherboard represents strength and elegance. White and silver color schemes with digital camouflage accents offer a unique visual appeal. Aluminum alloy heatsinks and a rugged PCB create an outstanding build that matches powerful setups. 2. Optimized VRM Design Equipped with a premium 12 1 1 power phase design, this motherboard ensures stable power delivery to critical components. Perfect for maintaining steady performance under heavy gaming or multitasking loads. 3. Dr. MOS Technology Integrated Dr. MOS solutions deliver intelligent power stages for optimized thermal performance. They enhance energy efficiency and offer smoother power delivery compared to traditional MOSFETs. AsRock Steel Legend WiFi Motherboard: 6 Layer PCB for Maximum Stability The 6-layer PCB in the AsRock B760M Steel Legend WiFi Motherboard provides better signal routing, increased stability, and enhanced overclocking potential. Reduces electrical interference for a cleaner and more reliable system environment. 5. DDR5 XMP & EXPO Support Supports the latest DDR5 memory technology with Intel XMP and AMD EXPO profiles. Unlock extreme memory performance easily with pre-validated overclocking profiles, ensuring faster speeds and lower latencies. 6. DDR5 Memory Protection Circuit in the AsRock B760M Steel Legend WiFi Motherboard The AsRock B760M Steel Legend WiFi Motherboard features a reinforced DDR5 memory protection circuit to prevent damage from electrical surges and potential shorts. Guarantees long-term reliability and secure system performance. 7. PCIe 5.0 Reinforced Steel Slot (PCIe 5.0 Version) Next-generation PCIe 5.0 x16 slot with reinforced steel armor supports the latest high-performance graphics cards. Enhanced retention strength protects against heavy GPU sag and improves signal stability. 8. High-Speed M.2 Solution (PCIe Gen4 x4) Equipped with multiple M.2 slots supporting PCIe Gen4 x4 interface, allowing lightning-fast storage performance. Ideal for gamers and creators needing fast boot times and quick file transfers. 9. Nahimic Audio Immersive audio experience powered by Nahimic, delivering crystal-clear sound for gaming, streaming, and entertainment. Offers superior 3D surround sound and dedicated tuning options for various devices like headsets, speakers, and microphones. 10. Polychrome RGB Lighting ASRock’s Polychrome RGB system features vibrant lighting options with customizable effects. Sync lighting across compatible RGB components to create a unified and stunning PC aesthetic. 11. Dragon 2.5Gb/s LAN Faster wired networking with the integrated Dragon 2.5 Gigabit Ethernet port. Enhances online gaming, streaming, and high-volume data transfers with lower latency and higher bandwidth. 12. Wireless Networking (WiFi 6E Bluetooth 5.2) Cutting-edge WiFi 6E module offers extended wireless bandwidth, minimal interference, and higher data rates. Bluetooth 5.2 provides seamless connectivity with a wide range of wireless peripherals. Applications of the AsRock DDR5 Computer Motherboard 1. High-End Gaming Optimized for today’s latest processors and GPUs, delivering the horsepower needed for AAA titles at ultra settings. PCIe 5.0 support ensures futureproof GPU compatibility for next-gen gaming. 2. Content Creation and Editing Supports fast DDR5 memory and ultra-speed M.2 storage to handle 4K video editing, 3D rendering, and photo manipulation efficiently. Dr. MOS and advanced VRM design offer smooth multitasking during heavy creative workloads. 3. Live Streaming and Broadcasting Nahimic Audio and high-speed network solutions in the AsRock WiFi Gaming Computer Motherboard make this board perfect for streaming professionals who need top-tier audio and minimal latency. Powerful wireless and wired connectivity options ensure consistent performance while broadcasting. 4. Productivity and Office Workstations With multiple connectivity options and stable performance under multitasking environments, it suits professional workloads like programming, virtual meetings, and data analysis. PCIe Gen4 storage options allow rapid access to large files and databases. 5. Home Entertainment Systems High-definition audio, vibrant RGB lighting, and strong connectivity features make it an excellent choice for home theaters or media centers. WiFi 6E and Dragon LAN ensure buffer-free streaming of UHD content. Additional Highlights of the AsRock WiFi Gaming Computer Motherboard – Heavy-Duty Protection Features: Full Spike Protection in the AsRock WiFi Gaming Computer Motherboard is for safeguarding components against sudden voltage spikes. Premium 60A power chokes and Nichicon 12K black capacitors for improved durability and energy efficiency. – Multiple USB Options: Includes USB 3.2 Gen2x2 Type-C, USB 3.2 Gen1, and USB 2.0 ports for extensive device compatibility and rapid data transfer. – BIOS Flashback and EZ Mode BIOS: Allows easy BIOS updates even without a CPU installed. User-friendly BIOS interface for straightforward overclocking and system tweaks. – Storage Flexibility: SATA 6Gb/s ports in addition to M.2 slots provide flexible storage options for both SSDs and HDDs. – Expandability: The AsRock WiFi Gaming Computer Motherboard supports multiple GPU setups and has expansion slots ready for additional peripherals like capture cards, additional NVMe storage, or sound cards. AsRock B760M Steel Legend WiFi Motherboard: Worth the Investment The AsRock B760M Steel Legend WiFi Motherboard represents a perfect blend of style, power, durability, and innovation. With cutting-edge support for PCIe 5.0, DDR5 memory, WiFi 6E networking, and ultra-fast M.2 storage, it stands ready to meet the demands of next-gen gaming, content creation, and professional multitasking. Combined with its rugged design philosophy and polished aesthetics, it is an outstanding choice for any serious builder or gamer aiming for a reliable and visually striking setup.
