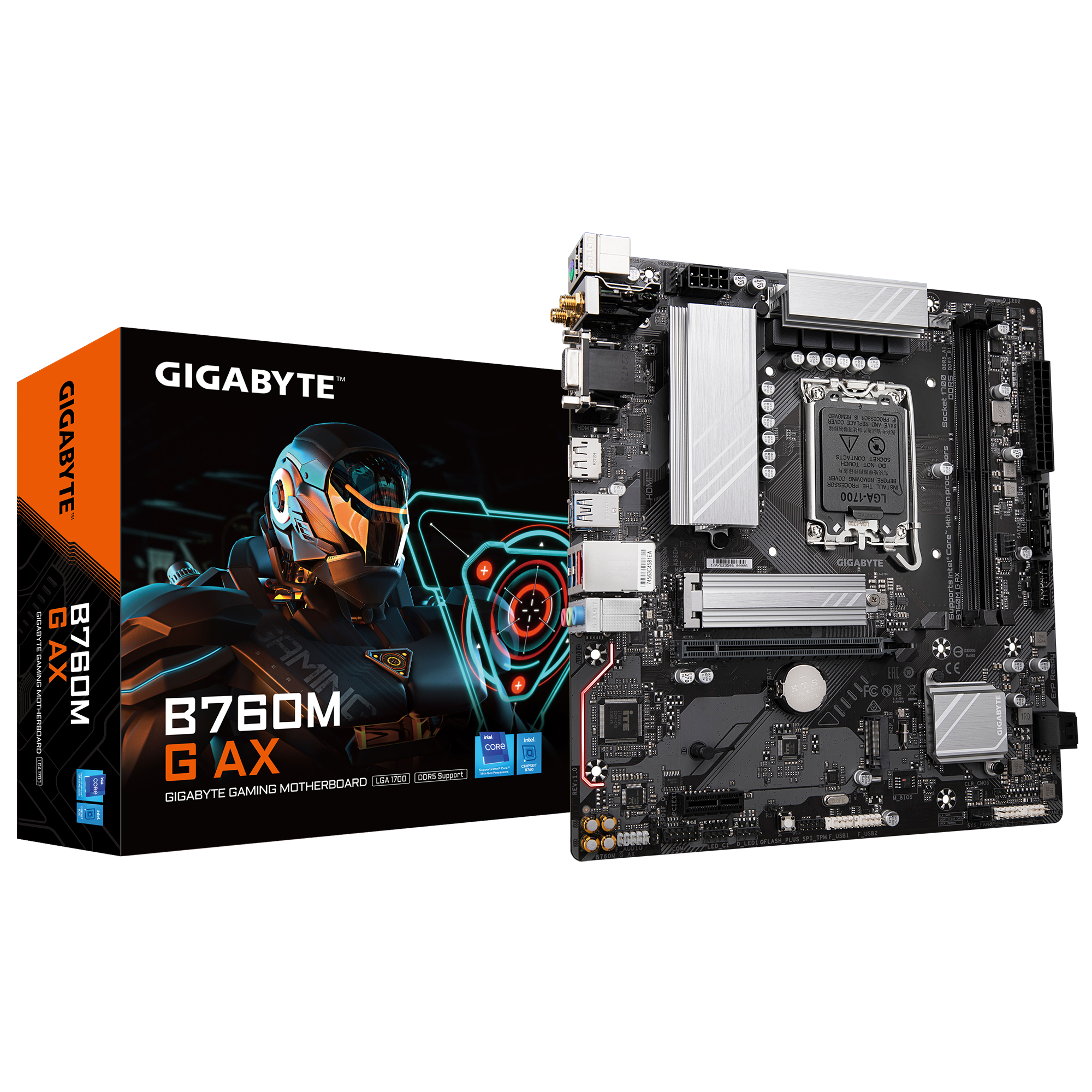

Gigabyte B760M G AX Motherboard

About Gigabyte B760M G AX Motherboard Category Feature Detail CPU Socket LGA 1700 Supported Processors 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors Chipset Intel® B760 Express Chipset Memory Slots 2 x DDR5 DIMM sockets Max Capacity Up to 96 GB (48 GB single DIMM capacity) Architecture Dual Channel Supported Speeds Up to DDR5 8000 (OC) and beyond, supports XMP 3.0 Graphics Integrated Graphics Intel® HD Graphics support (D-Sub, HDMI, DisplayPort – actual support varies with CPU) Multi-display Support Up to triple-display simultaneously Expansion Slots PCIe x16 1 x PCI Express x16 slot, supporting PCIe 4.0 (x16 mode) PCIe x1 1 x PCI Express x1 slot, supporting PCIe 3.0 Storage M.2 Connectors 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) SATA Ports 4 x SATA 6Gb/s connectors RAID Support RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices Networking LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Intel® Wi-Fi 6E AX211 (Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz carrier bands, 11ax 160MHz) Bluetooth BLUETOOTH 5.3 Audio Audio Codec Realtek® Audio CODEC Channels 2/4/5.1/7.1-channel High Definition Audio, Audio Noise Guard, High-End Audio Capacitors S/PDIF Out Yes USB Ports Rear USB 1 x USB Type-C® (USB 3.2 Gen 1), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 Internal USB Headers 1 x USB 3.2 Gen 1 header (for 2 ports), 2 x USB 2.0/1.1 headers (for 4 ports) Internal I/O Power Connectors 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector Fan Headers 1 x CPU fan header, 3 x system fan headers RGB Headers 2 x addressable LED strip headers, 1 x RGB LED strip header Other Headers Front panel header, front panel audio header, S/PDIF Out header, Trusted Platform Module header, serial port header, Q-Flash Plus button, reset jumper, Clear CMOS jumper Back Panel I/O Ports 2 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse, 2 x SMA antenna connectors, 1 x D-Sub, 1 x HDMI, 1 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB Type-C® (USB 3.2 Gen 1), 1 x RJ-45, 3 x audio jacks Form Factor Micro ATX Form Factor (24.4cm x 22.5cm) Features VRM Design 6 2 1 Phases Hybrid Digital VRM Solution with Low RDS(on) MOSFETs Thermal Design Advanced Thermal Design with fully covered MOSFET Heatsinks, M.2 Thermal Guard EZ-Latch PCIe 4.0 x16 Slot with Quick Release Design Smart Fan 6 Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, precise fan curve control Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card PerfDrive GIGABYTE exclusive BIOS settings for balancing performance, power consumption, and temperature OS Support Windows 11 64-bit, Windows 10 64-bit Key Features Overview of the Gigabyte Gaming Performance Motherboard Intel® B760 chipset: Designed for 12th–14th Gen Intel Core LGA 1700 processors. Hybrid 8   1   1 phase digital VRM with 60 A DrMOS for efficient, stable power delivery. PCIe 4.0 support: One reinforced x16 slot for graphics and two PCIe 4.0 x4 M.2 slots for ultra-fast NVMe storage. Dual-channel DDR5 memory via four DIMM slots supporting XMP performance profiles. Advanced thermal design, featuring full heatsinks and thermal guards to maintain VRM and M.2 SSD temperatures. Front-panel USB‑C 10Gb/s, HDMI, and DisplayPort outputs for flexible connectivity. Smart Fan 6 technology: Multiple temperature sensors, hybrid fan headers, and fan-stop controls EZ-Latch PCIe slot for easy GPU installation/removal. Q‑Flash Plus BIOS update without CPU, RAM, or GPU installed. 2.5 GbE LAN & Wi‑Fi 6E (802.11ax) with access to the 6 GHz band, reducing interference and improving throughput by up to 5.5× compared to Wi‑Fi 5. Audio solution: 8‑channel HD audio with noise guard and premium capacitors for clean sound output. RGB Fusion headers: Two addressable two 12 V RGB connectors for system lighting. Gigabyte Gaming Performance Motherboard: Specification Highlights Dimensions: Compact micro-ATX (244 × 244 mm). CPU Support: The Gigabyte B760M G AX Motherboard is compatible with Intel Core 12th / 13th / 14th Gen via LGA 1700 socket. Memory: 4× DDR5 slots, supporting up to 7600 MT/s (OC), total capacity up to 192 GB; XMP ready. Storage Ports: 2× PCIe 4.0 M.2 x4 (NVMe only) 4× SATA III (6 Gb/s). Expansion: 1× PCIe 4.0 x16, 1× PCIe 3.0 x4; EZ-latch reinforcement. Rear USB I/O: USB‑C 3.2 Gen 2, USB‑A Gen 1, USB‑2.0, plus PS/2 and audio jacks. Video Outputs: HDMI 2.0 DisplayPort 1.4, supporting triple-display with CPU iGPU Networking: 2.5 GbE LAN (Realtek RTL8125BG) & Wi‑Fi 6E BT 5.x. Audio Codec: Realtek ALC897 or equivalent; shielded layout for lower interference. Gigabyte Gaming Performance Motherboard: Performance in Every Aspect VRM & Power Delivery: The 8   1   1 phase design with 60 A DrMOS in the Gigabyte B760M G AX Motherboard ensures efficient handling of 125 W Turbo boost CPUs, optionally extendable with airflow assistance. Memory Performance: Dual-channel DDR5 with XMP support enables high-bandwidth memory setups for gaming and productivity Storage Speeds: PCIe 4.0 M.2 slots deliver up to 7,000 MB/s bandwidth for NVMe SSDs; thermal guards prevent throttling Graphics Performance: PCIe 4.0 x16 slot and outputs support current-gen GPUs and triple-display via integrated graphics. Networking Throughput: Wired 2.5 GbE and Wi‑Fi 6E reduce latency and congestion, ideal for gaming, streaming, and large data transfers. Thermal Efficiency: Large VRM heatsinks, M.2 shields, Smart Fan 6 controls ensure stable operation in high-load scenarios. Gigabyte Computer Gaming Motherboard: Enhanced Up‑to‑Date Connectivity Wi‑Fi 6E Dual-Band 6 GHz: With the Gigabyte B760M G AX Motherboard, it is sure that one can attain faster speeds, reduced traffic in dense environments, smoother VR streaming while enjoying or working in your content. 2.5 GbE LAN: High-bandwidth wired connection for gaming and workstation use. USB Options: Front USB‑C 10 Gb/s, multiple USB 3.2 Gen 1/2 and USB‑2.0 ports provide flexibility for peripherals. Dual Video Outputs: HDMI and DisplayPort offer plug-and-play support for diverse monitor setups Gigabyte Durable Computer Motherbaord: Durability & Build‑Quality Features Reinforced PCIe Slot & PCIe EZ‑Latch: Structural GPU support and easy release. Solid I/O Shield & Heatsinks: Factory-installed shield and full coverage keep components safe and cool. Ultra-Durable PCB & Components: Premium chokes, capacitors, and DrMOS deliver long-term reliability. Thermal Guards: Prevent thermal throttling during intense tasks. Gigabyte Intel Series Desktop Motherboard: Intel Core Processor Performance 12th–14th Gen Intel CPUs: The Gigabyte B760M G AX Motherboard is fully compatibility with chips from Core i3 to i9, with stable power delivery for sustained workloads. Overclocking Support: XMP memory profiles easy to enable; CPU power limits adjustable in BIOS Built-in GPU Output: Excellent iGPU support for Core i5/i7 with UHD graphics in everyday, productivity, and casual gaming Thermal Management: Smart Fan 6 ensures VRM and chipset stay cool during extended use Gigabyte Computer Gaming Motherboard: Application Utility & Benefits Gaming Builds: Fast networking, PCIe 4.0 storage/GPU, triple-display support, sturdy build for long-term gaming rigs Content Creation: High-speed M.2 storage, USB‑C, multi-display, and CPU-GPU support accelerate editing workflows Home & Office: Efficient power, quiet cooling, and a variety of I/O make it ideal for workstations and daily use Compact Builds: Micro-ATX form factor suits mini-ITX cases with enough features for serious performance Easy Upgrades/Repairs: EZ-Latch GPU slot, Q-Flash Plus BIOS, strong headers simplify DIY tasks Gigabyte Gaming Performance Motherboard: Benefits Summary Future‑ready: LGA1700 socket and B760 chipset ensure compatibility with current and future Intel CPUs Balanced performance: Excellent VRM and DDR5 support for multitasking, gaming, and creation Superior connectivity: Includes cutting-edge Wi‑Fi 6E, 2.5 GbE, USB‑C, video outputs—all hygienic for modern setups Durable design: Quality materials and thermal engineering make for a long-lasting build User‑friendly build experience: EZ‑Latch slots and BIOS flashback cater to novices and experts alike Gigabyte B760M G AX Motherboard: worth the investment? The Gigabyte B760M G AX Motherboard is a thoughtfully designed micro‑ATX motherboard that balances power, performance, connectivity, and durability—ideal for modern Intel Core-based systems. Whether you’re building a gaming rig, workstation, or office setup, this board delivers reliable stability and future-ready tech in a compact yet flexible form.
